Server D100 SNMP¶

The Server D100 can be managed via SNMP if configured in iLO. This page provides an example of how SNMP can be configured for management with Zabbix. It is not meant to teach how to use SNMP or a management tool.

Additional information can be found at links at the end of the page.

First, connect to iLO.

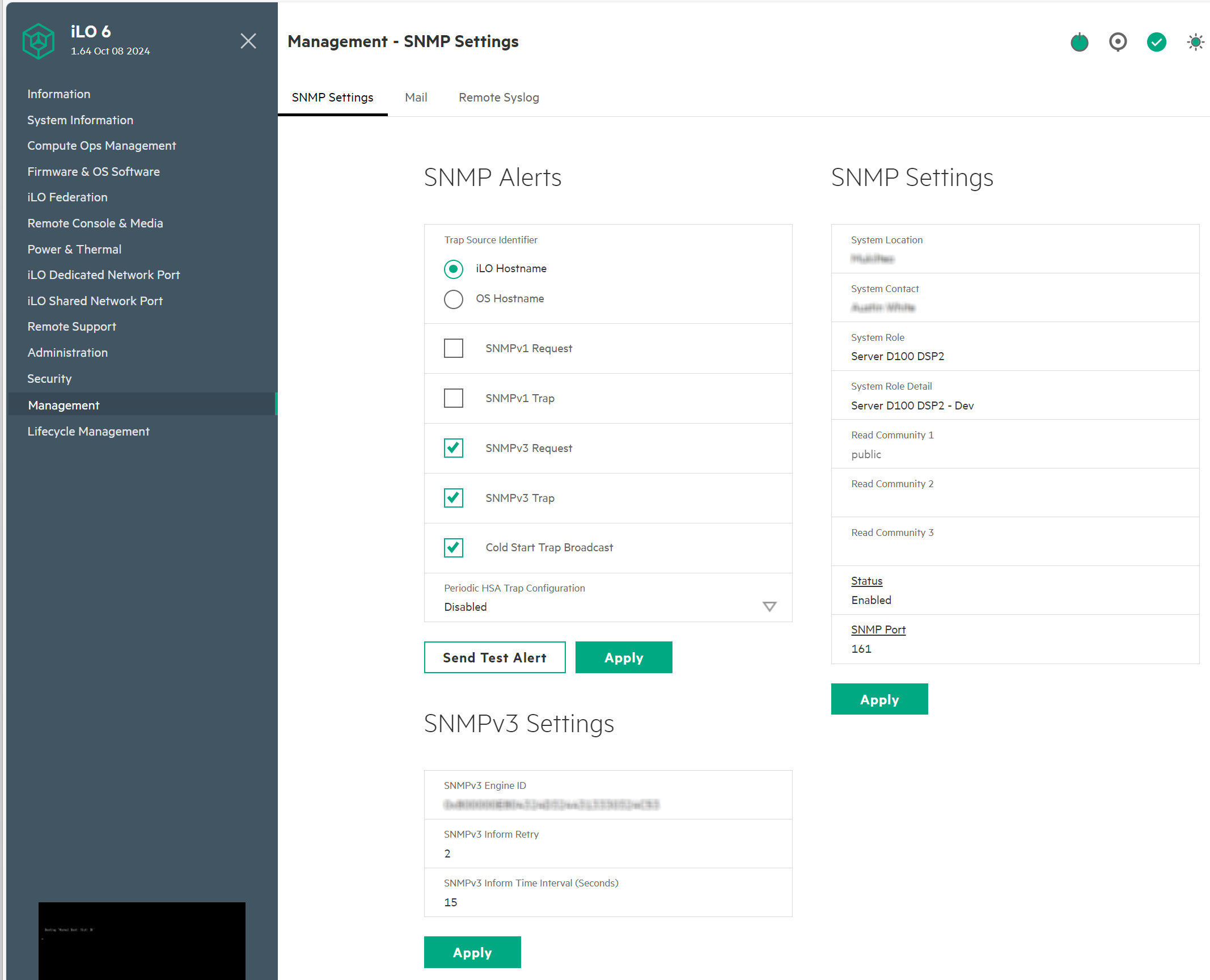

SNMP is configured on the iLO Management page:

The example above shows typical configuration settings for SNMPv3. SNMPv1 is supported but not recommended as it is not secure.

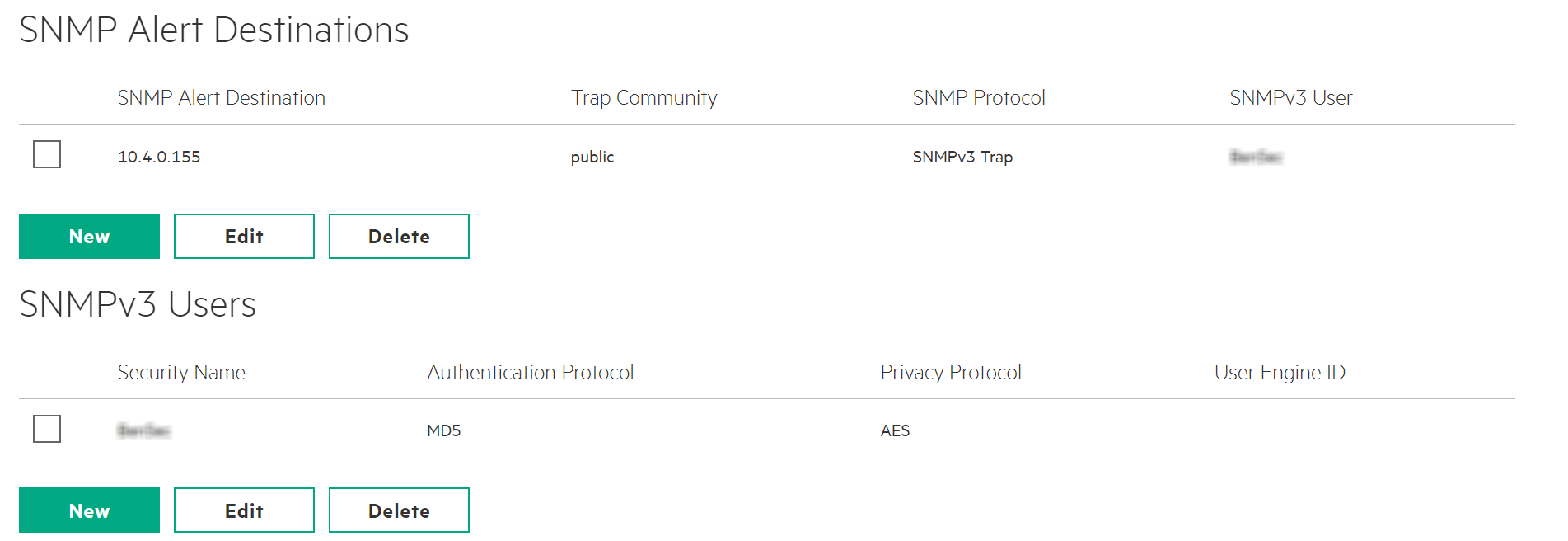

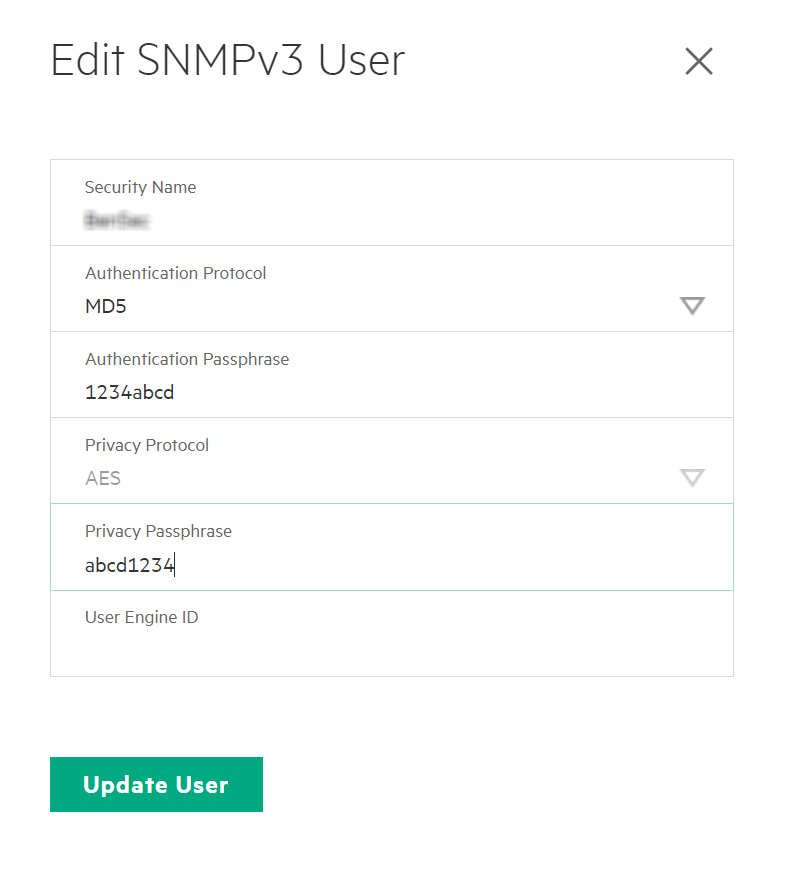

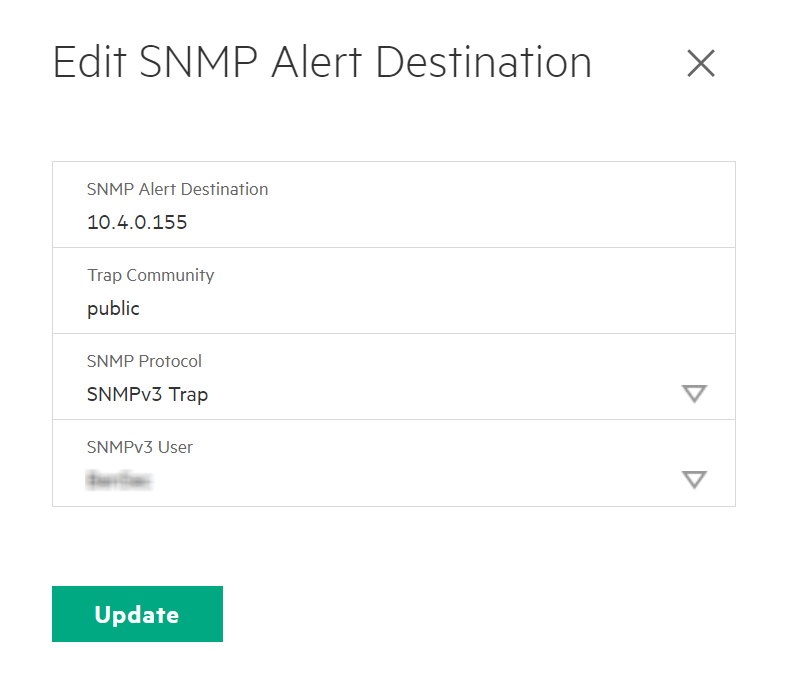

The Alert and User Settings must also be configured.

Once the configuration is complete, it can be managed in a tool, like Zabbix.

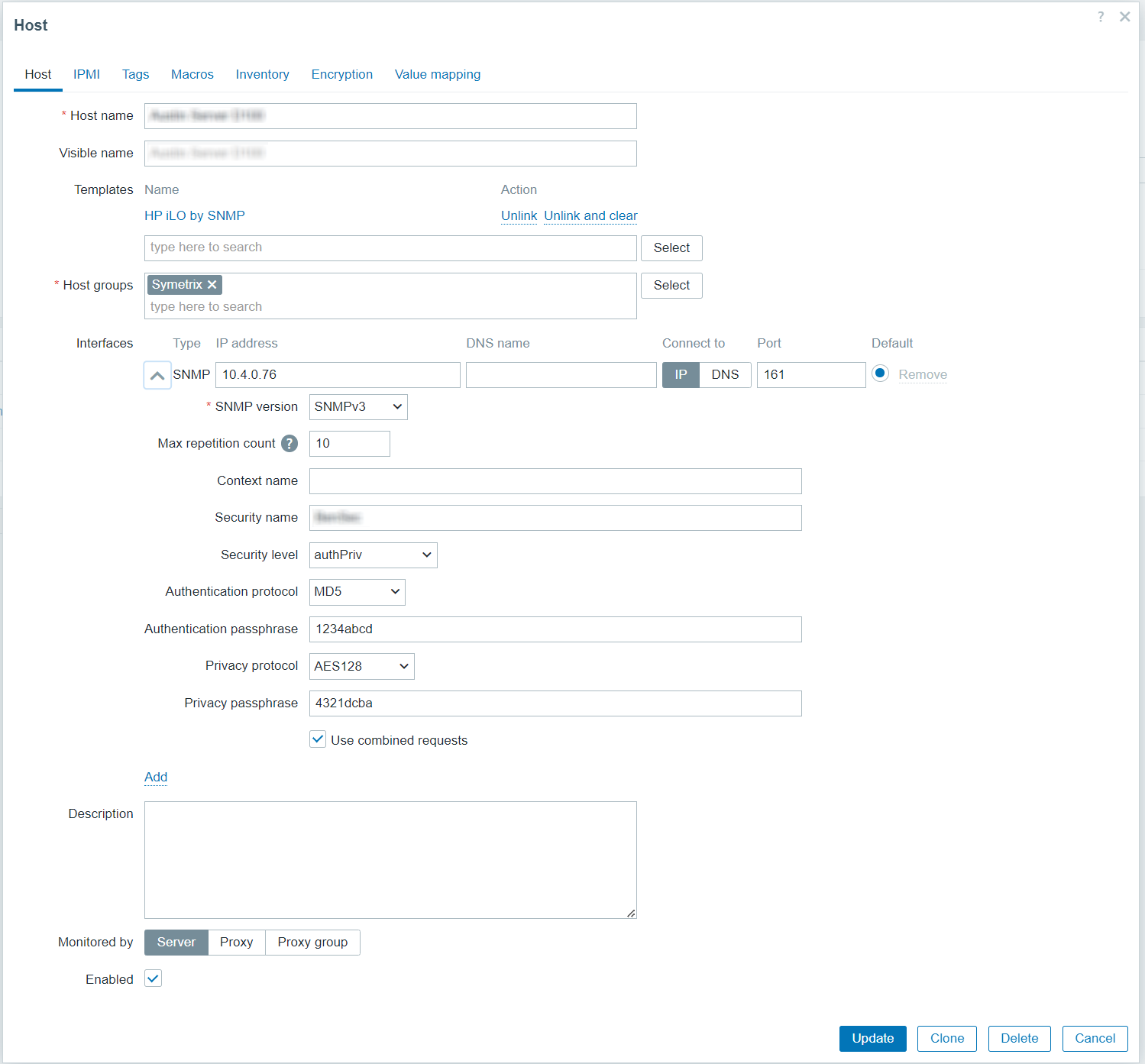

First the Host must be added to monitor the SNMP data.

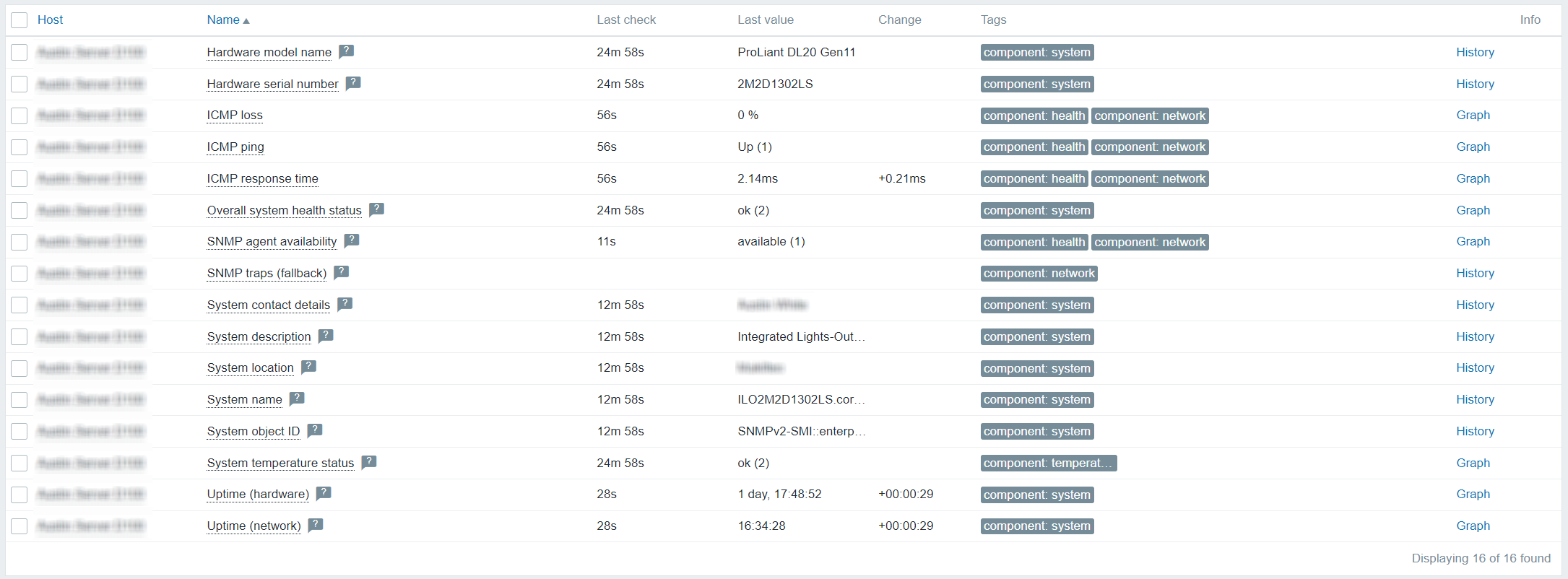

Then, the latest data and any issues can be monitored.

For more information, see the following:

• ILO 6 Manual
• Zabbix
