ARC-PSe Power Supply¶

Specifications

Mechanical Data

A&E Specifications

Rear Panel

ARC Network Design

Basic Hook Up Diagram

Connecting Multiple Units

Mounting

Features:

• Distributes power and data to multiple ARC wall panels via eight RJ-45 connectors over long distances.

• Connects directly to any Integrator Series, Jupiter or Symetrix DSP unit using standard CAT5/6 cables.

• Supports flexible ‘star’ configuration, ‘daisy-chain’, or a hybrid of the two.

• Versatile half-rack design. All hardware is included to mount 1 or 2 in a single rack space or to surface mount.

• ARC Power Calculator spreadsheet helps determine maximum ARC quantities and distances between wall panels.

Specifications¶

Total ARC Cable Length (RS-485 from DSP to furthest ARC): Standard CAT5/6, maximum total cable length = 4000 feet / 1219 meters for RS-485 data.

Number of ARCs Supported: The power draw is dependent upon ARC types used, number of each type, and total cable length. At least 8 ARC-2e with 800 feet / 243 meters of cable supported.

Mechanical Data¶

Space Required¶

Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance.

Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.

Electrical¶

24 VDC @ 1 Amps (24 Watts) maximum.

No line voltage switching required.

Ventilation¶

Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.

Certifications or Compliance¶

EMC: EN 55103-1, EN 55103-2, FCC Part 15

Environmental: RoHS

Shipping Weight¶

2.0 kg (4.4 lbs.)

A&E Specifications¶

The half rack wall panel power supply shall provide one ARC in and eight ARC out ports on RJ45 connectors. The device shall function as a power supply and RS-485 data router for Symetrix ARC wall panels using standard CAT5/6 cable.

The rear panel shall also include an indicator for POWER.

The device shall have locking power plug that accepts power from Mean Well power supply part number GS25A24-P1J fitted with a Switchcraft part number 767K plug or suitable 24 VDC /1 Amp auxiliary power source. The device shall meet CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The included external power supply shall be UL and CE marked. The chassis shall be constructed of cold rolled steel, and may be surface mounted or mount into a standard 19” 1U EIA rack. The device shall be aSymetrix ARC-PSe.

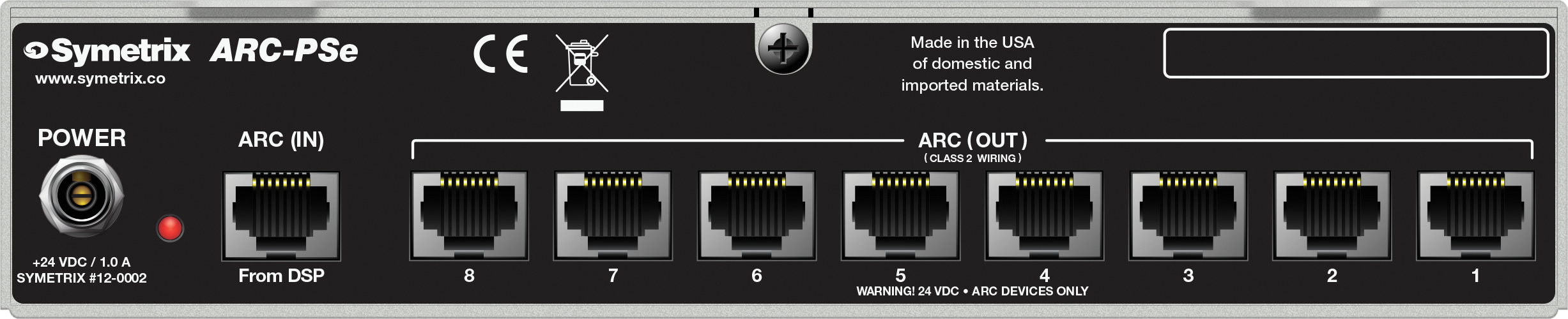

Rear Panel¶

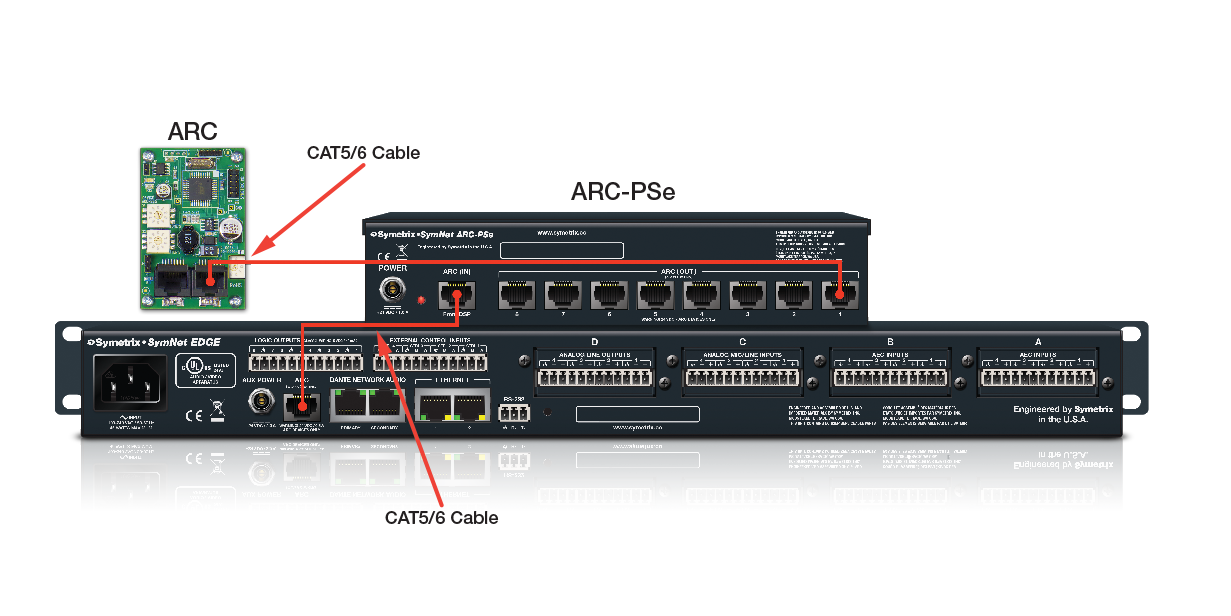

Basic Hook Up Diagram¶

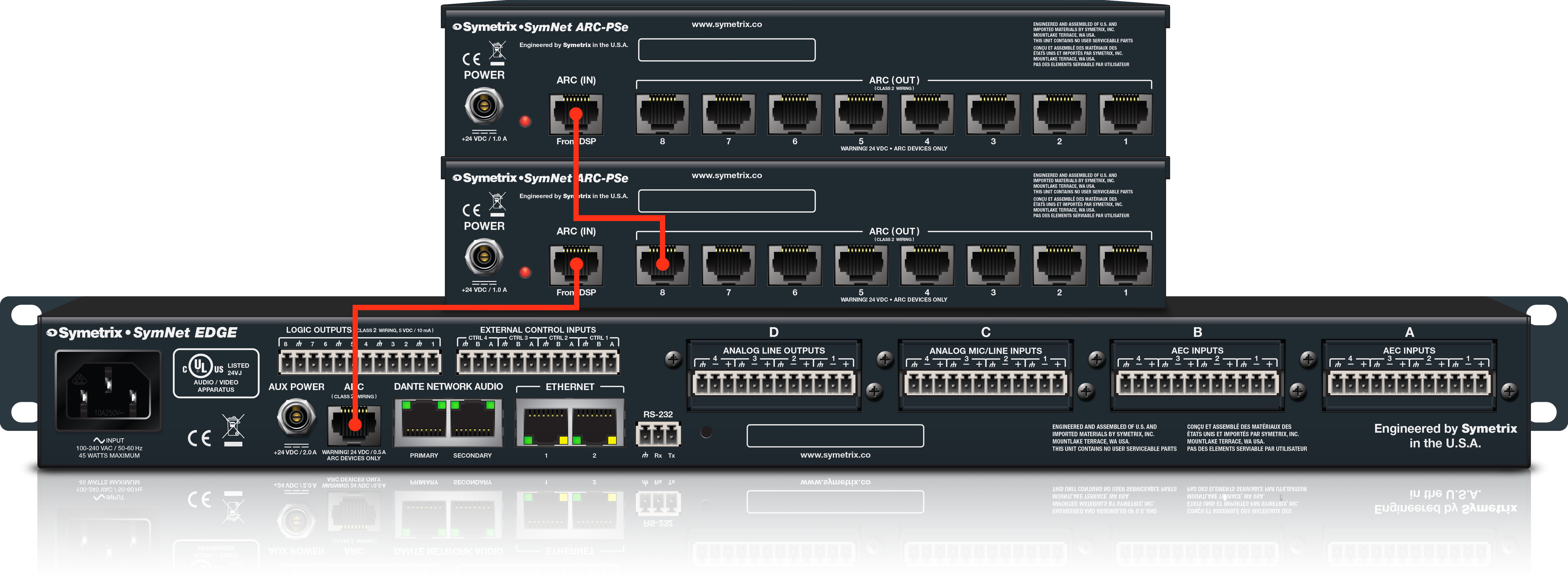

Connecting Multiple Units¶

Note: Each ARC-PSe must be powered separately with the included external power supply.

Mounting¶

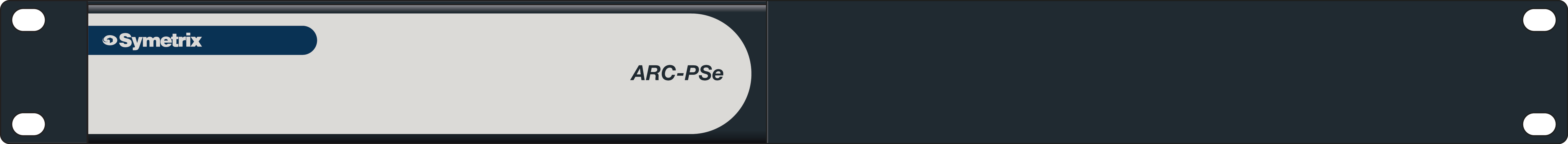

Sing Unit Assembled

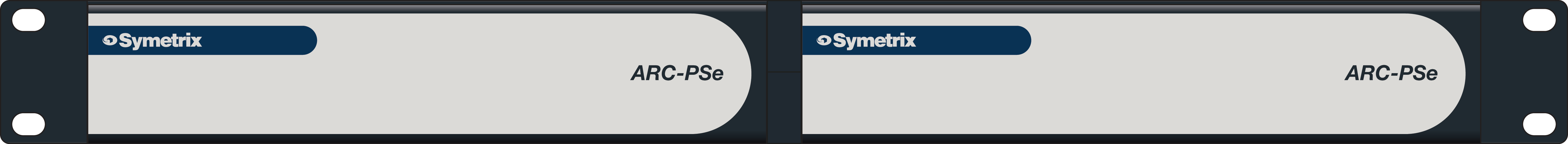

Dual Unit Assembled

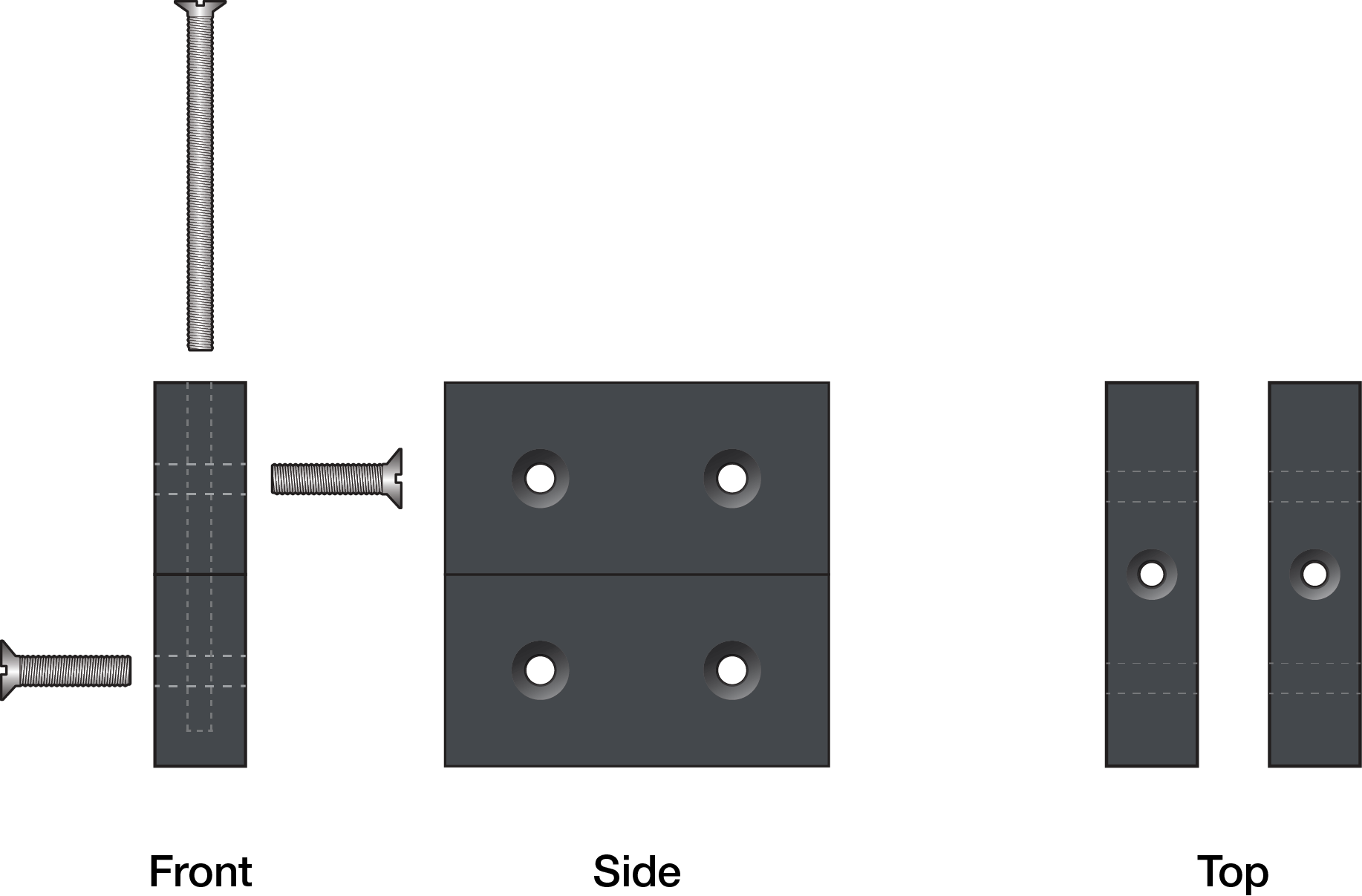

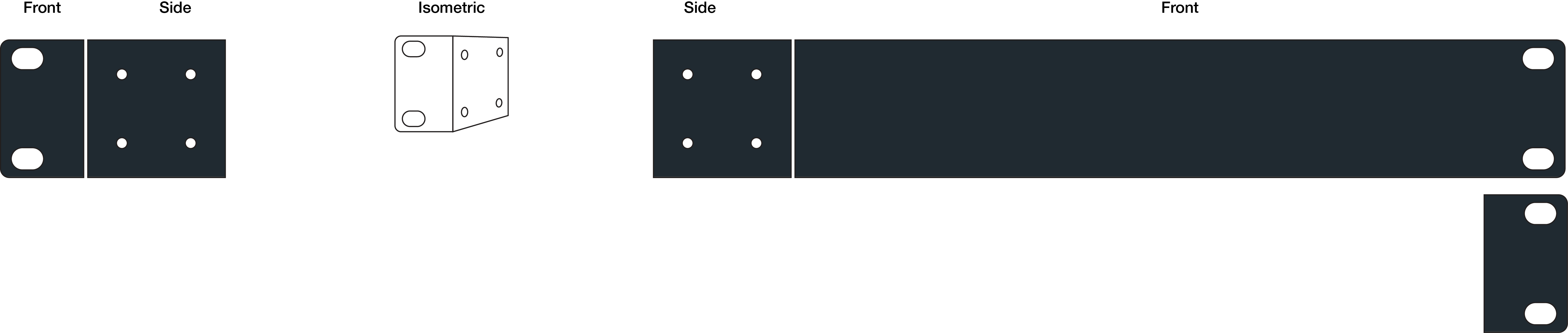

Hardware
