String Output Programming¶

In the design view of the DSP, go to the Toolkit and expand Control Modules>Control Outputs and double-click String Output.

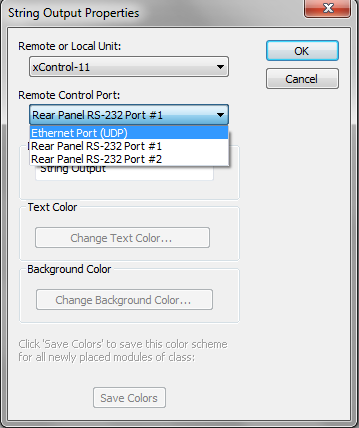

Make sure the xControl is selected under Remote or Local Unit. Select which Logic Output of the remote control port to program in the design. Rename the module under Description. Select OK.

Refer to the Control Output section for programming options.
