xIO XLR - Hardware¶
xIO XLR units offer world-class audio quality and precision control of audio and Dante settings. Available in both US and EU form factors, the xIO XLRs has a clean, sleek design and is compatible with standard gang US wall boxes with Decora faceplates and EU/UK standard wall boxes.
IP control and PoE power simplify installation by allowing a single cable connection from the xIO XLR units to a PoE-enabled network switch. All aspects of xIO XLR control can be controlled using Symetrix remotes, SymVue panels, or third-party control systems.
There are four models in the xIO XLR family.
| **xIO XLR 1x1 ** | **xIn XLR 2 ** | **xIO XLR 2x2 ** | **xIn XLR 4 ** | |
| Size | 1 Gang | 1 Gang | 2 Gang | 2 Gang |
| XLR Mic/Line Inputs | 1 | 2 | 2 | 4 |
| XLR Line Outputs | 1 | 0 | 2 | 0 |
| Dante Send | 1 | 2 | 2 | 4 |
| Dante Receive | 1 | 0 | 2 | 0 |
The xIO XLR units are fully integrated members of the Symetrix xIO family of Dante endpoints. This provides full control and configuration of the devices, including Dante routing, from within Symetrix Composer software. All aspects of the xIO XLRs are fully configurable including levels, device name, Dante channel names, and connect/reconnect functionality.
Features¶
- Wall mounted Mic/Line PoE Dante endpoints
- Transparent mic preamps with up to 51 dB of gain adjustable in 3 dB increments
- Studio-grade AD/DA
- Up to 4 channels of Dante IO with support for AES67 operation
- Support for sampling rates up to 96K
- Die-cast zinc construction with exacting tolerances
- Configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
- Customizable front-panel RGB LEDs
- Programmable control buttons
- PoE IEEE 802.3af; 15.4W Max
- Available with premium black or white finishes
- Supports standard Decora faceplates
- Perfect for Conferencing, Hospitality, Education, House of Worship, or Fitness applications
- Symetrix five-year warranty
Specifications¶
| Form Factor | 1-gang US or EU wall mount / 2-gang US wall mount |
|---|---|
| Display | Front panel LEDs per Input or Output |
| Compatibility | Symetrix ComposerTM - managed products |
| Supported Sample Rates | 48k and 96k (Configure in Dante Controller) |
| Ethernet Cable | Standard CAT5e or CAT6, maximum device to-device length = 100 meters |
| Space Required | 1-gang US or EU Wall Box. Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections |
|---|---|
| Electrical | PoE IEEE 802.3af Class 0, 15.4 Watts maximum |
| Ventilation | Maximum recommended ambient operating temperature is 40 C / 104 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light |
| Shipping Weight | Single Gang Euro 1.2 lbs, Single Gang US 1.25 lbs, Double Gang US 1.75 lbs |
| Product Weight | Single Gang Euro 0.7 lbs, Single Gang US 0.75 lbs, Double Gang US 1.25 lbs |
LED Operation¶
During boot, LEDs will flash using the following colors::
- Yellow: waiting to start boot
- Green: waiting for the Ultimo to wake up at a low level
- Blue: waiting for the Ultimo to respond to higher level commands
- Teal: loading configuration (routing and other settings from the site file)
- Purple: Waiting for Ethernet connection
When complete, they will return to the user configured LED operation.

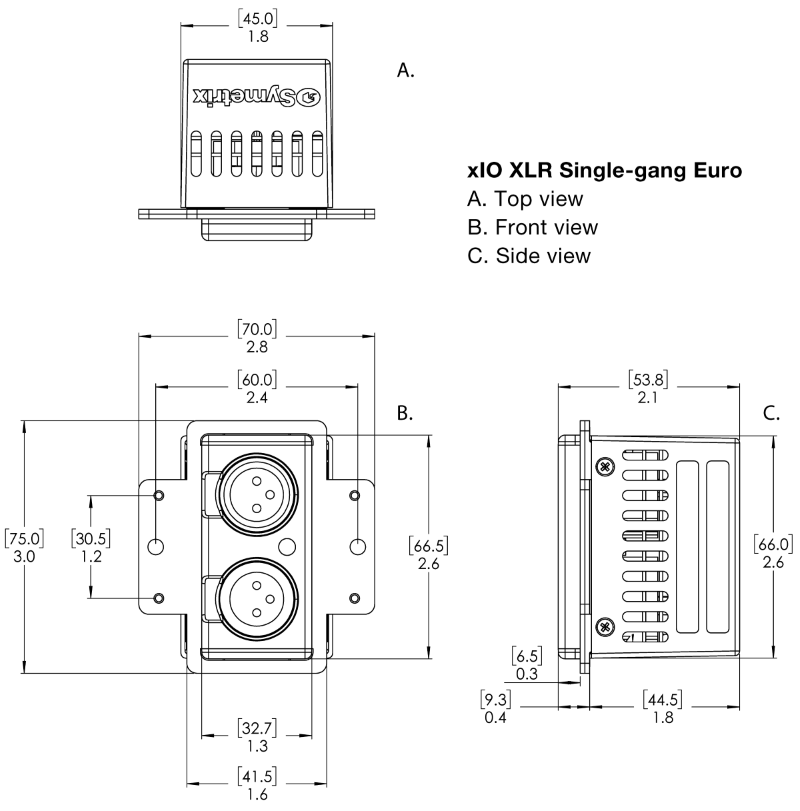

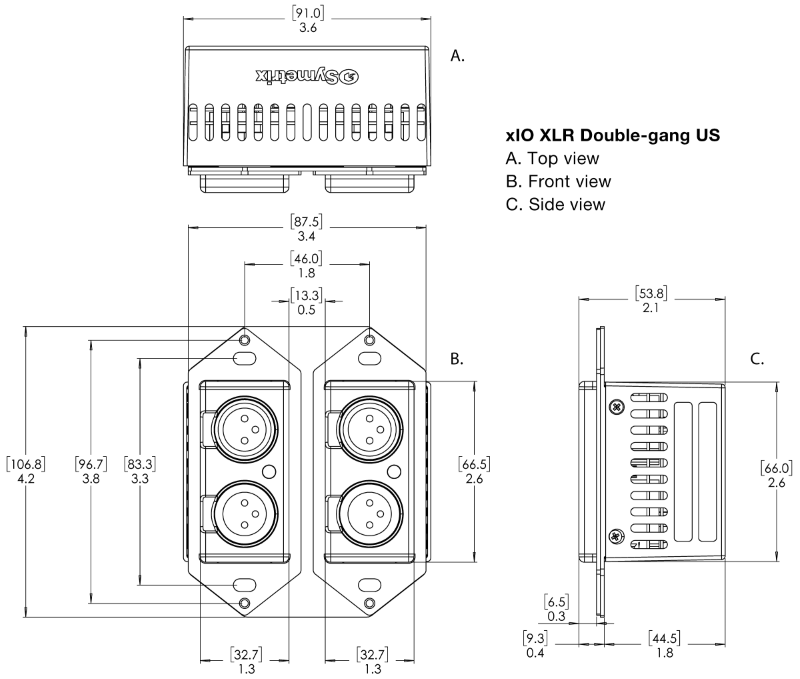

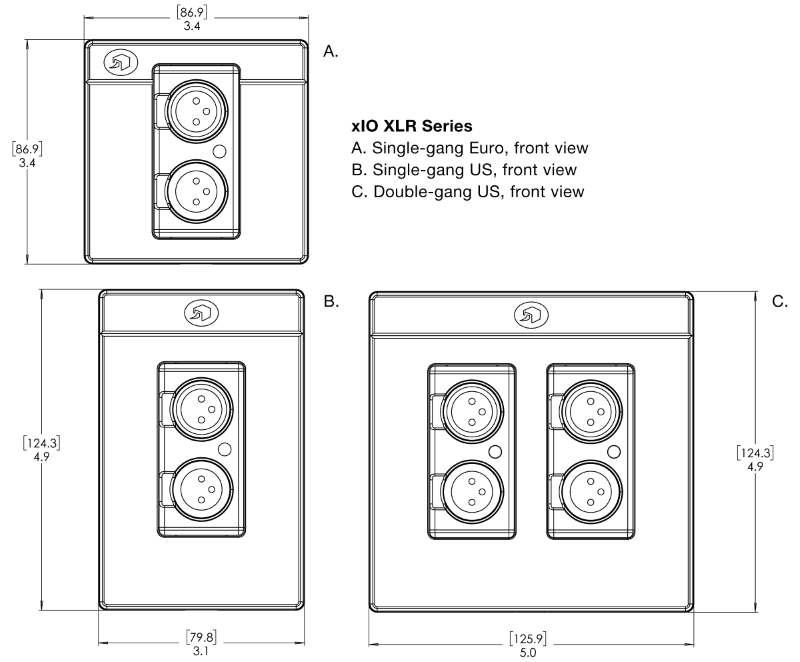

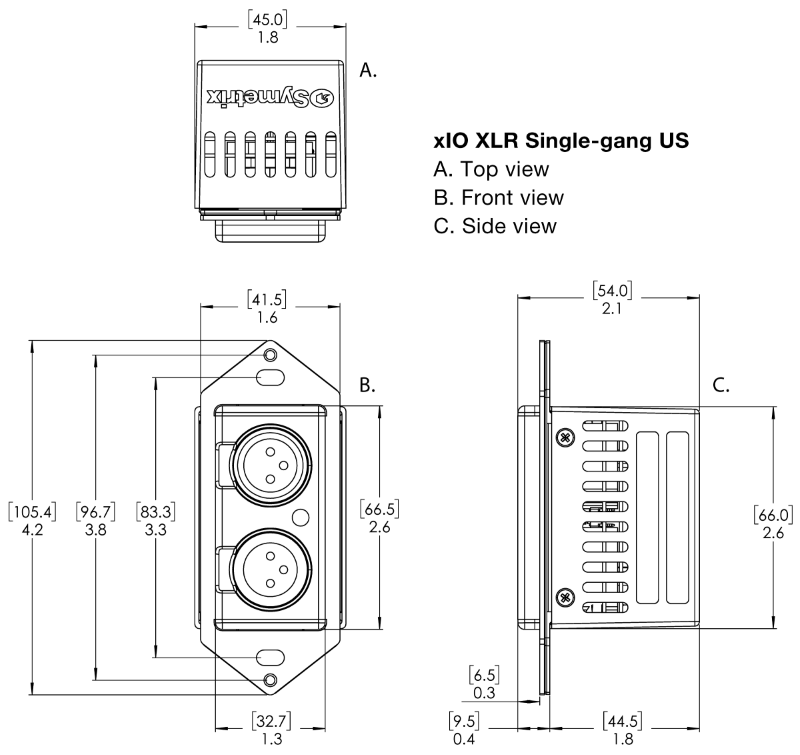

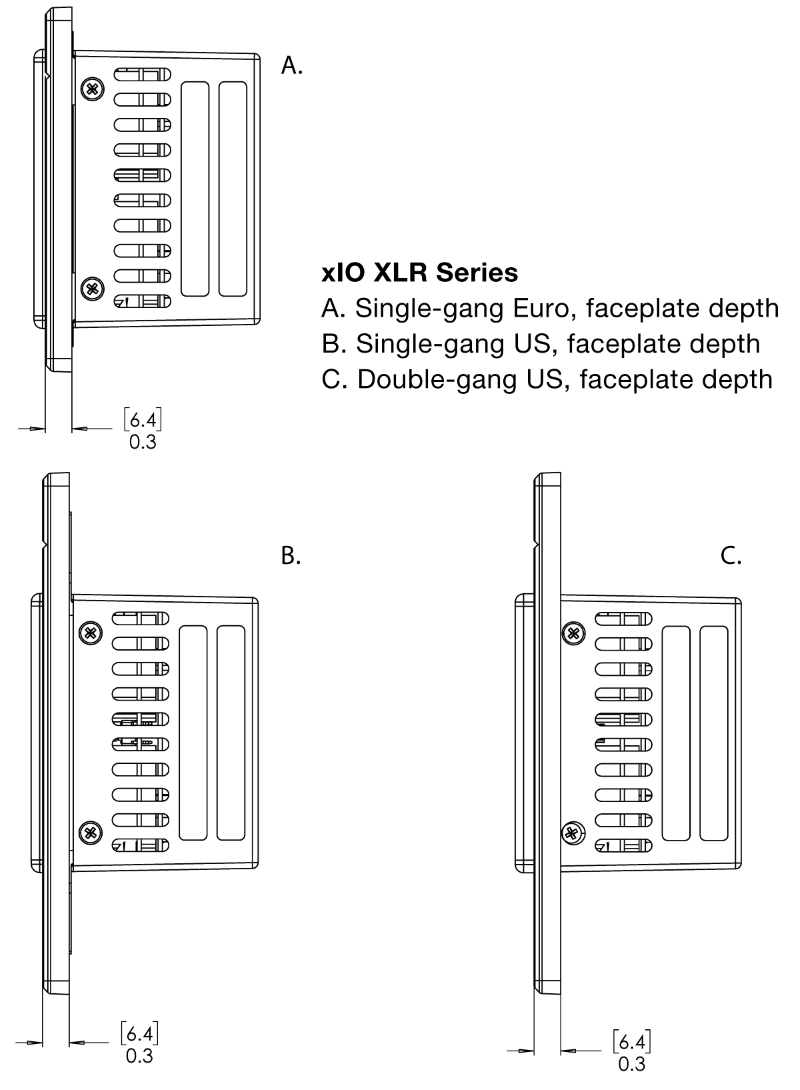

Mechanical Drawings¶
A&E Specifications¶
The xIO XLR shall be available in a single gang black or white Decora® wall plate, and compatible with US or EU/UK wall boxes.
Dante™ shall be utilized to transmit two channels of stereo audio from the device onto a Dante™ network to be received by any Dante-compatible endpoint. Conversely, one channel of Dante™ audio shall also be received by the xIO XLR when configured as a phone bridge. Audio sampling rate shall be at 48 kHz, with 24-bit resolution. The connector shall be 100 Base-T RJ45 utilizing CAT6 cable.
Dante subscriptions may then be made via Dante Controller software. For more detailed configuration and control of the device, a designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® 7 or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the devices via Dante™.
The device shall be powered over Ethernet (PoE) by an Ethernet cable from an IEEE 802.3af PoE compliant network switch, or injector. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant.
The device shall be aSymetrix xIO XLR.
All specifications subject to change.
