Input Selectors

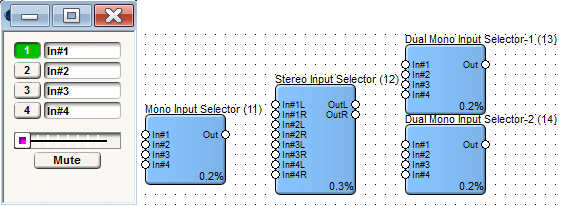

The input selectors are selector switches which make available a custom number (up to 80) inputs for Mono, Dual-Mono, or Stereo input versions of the module. Exactly one of the inputs is routed to the single output. When the input selection changes, a quick crossfade occurs to ensure a smooth transition without any clicks or pops.

Mono, Dual-Mono and Stereo versions of the module all have the same controls. The only difference is that with stereo versions, multiple stereo pairs of inputs are routed to a stereo pair output.

Controls:

  • Input buttons. One button per input is provided. Pushing the button selects the corresponding input.
  • Input slider. this control can also be used to select the input. It is provided primarily for remote control. If you are controlling an input selector from an ARC, analog pot/switch, or other remote control, assign the remote control number or device to this slider rather than the individual input buttons. Every Symetrix Control Number has a scale of 65535 and the Control Number assigned to the input slider is no exception. 65535 will need to be divided by the number of input selections in order to find the value associated with each selection.
Total inputs: 2
Input # Value Percentage
1 0 0.000%
2 65535 100.000%
Total inputs: 3
Input # Value Percentage
1 0 0.000%
2 32768 50.001%
3 65535 100.000%
Total inputs: 4
Input # Value Percentage
1 0 0.000%
2 21845 33.333%
3 43690 66.667%
4 65535 100.000%
Total inputs: 5
Input # Value Percentage
1 0 0.000%
2 16384 25.000%
3 32768 50.001%
4 49151 75.000%
5 65535 100.000%
Total inputs: 6
Input # Value Percentage
1 0 0.000%
2 13107 20.000%
3 26214 40.000%
4 39321 60.000%
5 52428 80.000%
6 65535 100.000%
Total inputs: 7
Input # Value Percentage
1 0 0.000%
2 10923 16.667%
3 21845 33.333%
4 32768 50.001%
5 43690 66.667%
6 54613 83.334%
7 65535 100.000%
Total inputs: 8
Input # Value Percentage
1 0 0.000%
2 9362 14.285%
3 18724 28.571%
4 28086 42.856%
5 37449 57.144%
6 46811 71.429%
7 56173 85.715%
8 65535 100.000%
Total inputs: 9
Input # Value Percentage
1 0 0.000%
2 8192 12.500%
3 16384 25.000%
4 24576 37.501%
5 32768 50.001%
6 40959 62.499%
7 49151 75.000%
8 57343 87.500%
9 65535 100.000%
Total inputs: 10
Input # Value Percentage
1 0 0.000%
2 7282 11.112%
3 14563 22.222%
4 21845 33.333%
5 29127 44.445%
6 36408 55.555%
7 43690 66.667%
8 50972 77.778%
9 58253 88.888%
10 65535 100.000%
Total inputs: 11
Input # Value Percentage
1 0 0.000%
2 6554 10.001%
3 13107 20.000%
4 19661 30.001%
5 26214 40.000%
6 32768 50.001%
7 39321 60.000%
8 45875 70.001%
9 52428 80.000%
10 58982 90.001%
11 65535 100.000%
Total inputs: 12
Input # Value Percentage
1 0 0.000%
2 5958 9.091%
3 11915 18.181%
4 17873 27.272%
5 23831 36.364%
6 29789 45.455%
7 35746 54.545%
8 41704 63.636%
9 47662 72.728%
10 53620 81.819%
11 59577 90.909%
12 65535 100.000%
Total inputs: 13
Input # Value Percentage
1 0 0.000%
2 5461 8.333%
3 10923 16.667%
4 16384 25.000%
5 21845 33.333%
6 27306 41.666%
7 32768 50.001%
8 38229 58.334%
9 43690 66.667%
10 49151 75.000%
11 54613 83.334%
12 60074 91.667%
13 65535 100.000%
Total inputs: 14
Input # Value Percentage
1 0 0.000%
2 5041 7.692%
3 10082 15.384%
4 15123 23.076%
5 20165 30.770%
6 25206 38.462%
7 30247 46.154%
8 35288 53.846%
9 40329 61.538%
10 45370 69.230%
11 50412 76.924%
12 55453 84.616%
13 60494 92.308%
14 65535 100.000%
Total inputs: 15
Input # Value Percentage
1 0 0.000%
2 4681 7.143%
3 9362 14.285%
4 14043 21.428%
5 18724 28.571%
6 23405 35.714%
7 28086 42.856%
8 32768 50.001%
9 37449 57.144%
10 42130 64.286%
11 46811 71.429%
12 51492 78.572%
13 56173 85.715%
14 60854 92.857%
15 65535 100.000%
Total inputs: 16
Input # Value Percentage
1 0 0.000%
2 4369 6.667%
3 8738 13.333%
4 13107 20.000%
5 17476 26.667%
6 21845 33.333%
7 26214 40.000%
8 30583 46.667%
9 34952 53.333%
10 39321 60.000%
11 43690 66.667%
12 48059 73.333%
13 52428 80.000%
14 56797 86.667%
15 61166 93.333%
16 65535 100.000%
Total inputs: 24
Input # Value Percentage
1 0 0.000%
2 2849 4.347%
3 5699 8.696%
4 8548 13.043%
5 11397 17.391%
6 14247 21.740%
7 17096 26.087%
8 19945 30.434%
9 22795 34.783%
10 25644 39.130%
11 28493 43.478%
12 31343 47.826%
13 34192 52.174%
14 37042 56.522%
15 39891 60.870%
16 42740 65.217%
17 45590 69.566%
18 48439 73.913%
19 51288 78.260%
20 54138 82.609%
21 56987 86.957%
22 59836 91.304%
23 62686 95.653%
24 65535 100.000%
Total inputs: 32
Input # Value Percentage
1 0 0.000%
2 2114 3.226%
3 4228 6.452%
4 6342 9.677%
5 8456 12.903%
6 10570 16.129%
7 12684 19.355%
8 14798 22.580%
9 16912 25.806%
10 19026 29.032%
11 21140 32.258%
12 23254 35.483%
13 25368 38.709%
14 27482 41.935%
15 29596 45.161%
16 31710 48.386%
17 33825 51.614%
18 35939 54.839%
19 38053 58.065%
20 40167 61.291%
21 42281 64.517%
22 44395 67.742%
23 46509 70.968%
24 48623 74.194%
25 50737 77.420%
26 52851 80.645%
27 54965 83.871%
28 57079 87.097%
29 59193 90.323%
30 61307 93.548%
31 63421 96.774%
32 65535 100.000%
Total inputs: 48
Input # Value Percentage
1 0 0.000%
2 1394 2.127%
3 2789 4.256%
4 4183 6.383%
5 5577 8.510%
6 6972 10.639%
7 8366 12.766%
8 9761 14.894%
9 11155 17.021%
10 12549 19.149%
11 13944 21.277%
12 15338 23.404%
13 16732 25.531%
14 18127 27.660%
15 19521 29.787%
16 20915 31.914%
17 22310 34.043%
18 23704 36.170%
19 25099 38.299%
20 26493 40.426%
21 27887 42.553%
22 29282 44.681%
23 30676 46.809%
24 32070 48.936%
25 33465 51.064%
26 34859 53.191%
27 36253 55.319%
28 37648 57.447%
29 39042 59.574%
30 40436 61.701%
31 41831 63.830%
32 43225 65.957%
33 44620 68.086%
34 46014 70.213%
35 47408 72.340%
36 48803 74.469%
37 50197 76.596%
38 51591 78.723%
39 52986 80.851%
40 54380 82.979%
41 55774 85.106%
42 57169 87.234%
43 58563 89.361%
44 59958 91.490%
45 61352 93.617%
46 62746 95.744%
47 64141 97.873%
48 65535 100.000%
Total inputs: 64
Input # Value Percentage
1 0 0.000%
2 1040 1.587%
3 2080 3.174%
4 3121 4.762%
5 4161 6.349%
6 5201 7.936%
7 6241 9.523%
8 7282 11.112%
9 8322 12.699%
10 9362 14.285%
11 10402 15.872%
12 11443 17.461%
13 12483 19.048%
14 13523 20.635%
15 14563 22.222%
16 15604 23.810%
17 16644 25.397%
18 17684 26.984%
19 18724 28.571%
20 19765 30.159%
21 20805 31.746%
22 21845 33.333%
23 22885 34.920%
24 23925 36.507%
25 24966 38.096%
26 26006 39.683%
27 27046 41.270%
28 28086 42.856%
29 29127 44.445%
30 30167 46.032%
31 31207 47.619%
32 32247 49.206%
33 33288 50.794%
34 34328 52.381%
35 35368 53.968%
36 36408 55.555%
37 37449 57.144%
38 38489 58.730%
39 39529 60.317%
40 40569 61.904%
41 41610 63.493%
42 42650 65.080%
43 43690 66.667%
44 44730 68.254%
45 45770 69.841%
46 46811 71.429%
47 47851 73.016%
48 48891 74.603%
49 49931 76.190%
50 50972 77.778%
51 52012 79.365%
52 53052 80.952%
53 54092 82.539%
54 55133 84.128%
55 56173 85.715%
56 57213 87.301%
57 58253 88.888%
58 59294 90.477%
59 60334 92.064%
60 61374 93.651%
61 62414 95.238%
62 63455 96.826%
63 64495 98.413%
64 65535 100.000%
  • Mute. This button smoothly mutes the output of the selector, effectively selecting a silent audio source.

A space is provided to name the inputs. Click in the box adjacent to the button and enter a name. The name entered will also appear on the module's input labels.

Note: unlike an electromechanical switch, you can't run these selectors backwards; i.e. as output selectors. A separate output selector module is provided for this application.
