T-7 Glass Touchscreen

Overview

The T-7 Glass touchscreen is ideal for houses of worship, conference rooms, auditoriums, hospitality or anywhere users need easy access to multiple functions simultaneously controlled by a Symetrix DSP system.

The T-7 Glass has a vivid, 1280x800 display, providing access to custom, multi-lingual GUIs that can be quickly designed in Symetrix Composer™ Software via drag and drop without any programming needed. Designs can then be deployed to T-7 with no additional licenses to purchase.

Clean and unobtrusive, the T-7 Glass is Ethernet-powered and can be mounted in any U.S. or EU 2-gang receptacle in either portrait or landscape orientation. An optional tabletop accessory allows the T-7 Glass to be deployed on conference room tables for added flexibility.

Features

  • 7-inch 1280×800 high-definition touchscreen
  • Best-in-class brightness of 500 nits
  • 5 finger multitouch
  • Drag-and-drop design and configuration from Symetrix Composer software
  • Batch configuration of multiple units
  • PoE+ powered
  • Fits US and Euro double-gang wall and junction boxes
  • Optional tabletop stand accessory
  • Five-year warranty

Specifications

Form Factor: 2-gang US or EU wall mount.

Display Type: Capacitive touch full-color TFT LCD.

Viewable Area: 5.9 in (151 mm) x 3.7 in (94 mm), 7 in (178 mm)

Resolution: 1280x800

Brightness: 500 nits.

Orientation: Landscape (horizontal)

Viewing Angle: ±85° horizontal, ±85° vertical

Multitouch: 5 fingers

System Compatibility: Symetrix Composer-managed products.

Ethernet Cable: Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.

Space Required: 2-gang US or EU Wall Box. Depth does not include connector allowance. Additional depth may be required depending upon your specific wiring and connections.

Mounting: Included 2-gang wall bracket, Optional Tabletop Stand - 80-0192

Electrical: Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max

Ventilation: The maximum recommended ambient operating temperature is 50 C / 122 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light.

Certifications or Compliance

Safety: UL 60065, cUL 60065, IEC 60065

EMC: “Class A” device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003.

Environmental: RoHS

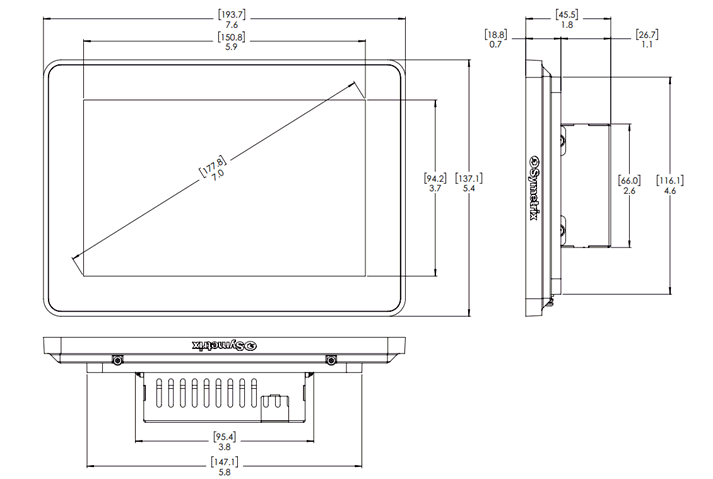

Dimension Drawing:

A&E Specifications

The touch-screen device shall enable control of a Symetrix DSP system via a full-color LCD screen with capacitive touch for user input.

The device’s display shall be rectangular measuring 7 inches (178 mm) diagonally with a 10:6 aspect ratio. It shall have a 1280x800 pixel resolution and up to 850 nits brightness. The controller shall be designed to mount on a wall surface and attach to standard North American and European wall and junction. When mounted, the face of the controller shall protrude 0.7 inches (19 mm) from the wall surface.

The device shall communicate with a Symetrix DSP system via 1000 Mbps Ethernet using standard TCP/IP protocols using an RJ45 jack on the rear panel. The device’s user interface screens with graphics, controls, indicators, labels, etc. shall be resident in non-volatile program memory which provides program security should the power fail. The device shall provide an onboard real-time clock to facilitate time and date display and may sync to NTP.

A designer software application shall be provided that operates on a Windows computer, with a network interface installed, running Windows 10® or higher operating system. The designer application shall develop and manage the device’s user interface screens constructed from objects within the Symetrix Composer software including faders, buttons, meters, LEDs, text, icons, and other graphics.

The controller shall have an operating temperature range of 0° C to 50° C (32° to 122° F) and shall be operable in non-condensing relative humidity as high as 85%. It shall typically dissipate 23 BTU (5.8 kcal) heat per hour but not more than 40 BTU (10.1 kcal) per hour.

The device shall be powered over Ethernet (PoE) by an IEEE 802.3af Class 0 standard-compliant switch. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of steel and molded plastic and mounted into a standard 2-gang US or EU Wall Box. The device shall be a SymetrixT-7.
