T-5 Touchscreen v2 Hardware¶
Product Highlights¶
- 5-inch 1280×720 high-definition touchscreen
- Best-in-class brightness of 500 nits
- Drag-and-drop design and configuration from Symetrix Composer software
- Batch configuration of multiple units
- PoE+ powered
- Fits US and Euro double-gang wall and junction boxes
- Optional tabletop stand accessory
- Five-year warranty
Specifications¶
General
Form Factor: 2-gang US or EU wall mount.
Display
Type: Capacitive touch full color TFT LCD.
Viewable Area: 4.34 in (110.4 mm) by 2.44 in (62.1 mm), 5 in (127 mm) diagonal.
Resolution: 1280x720 pixels.
Brightness: 500 nits
Viewing Angle: ±80° horizontal, ±80° vertical
Orientation: Landscape (horizontal).
System
Compatibility: Symetrix Composer-managed products.
Ethernet Cable: Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.

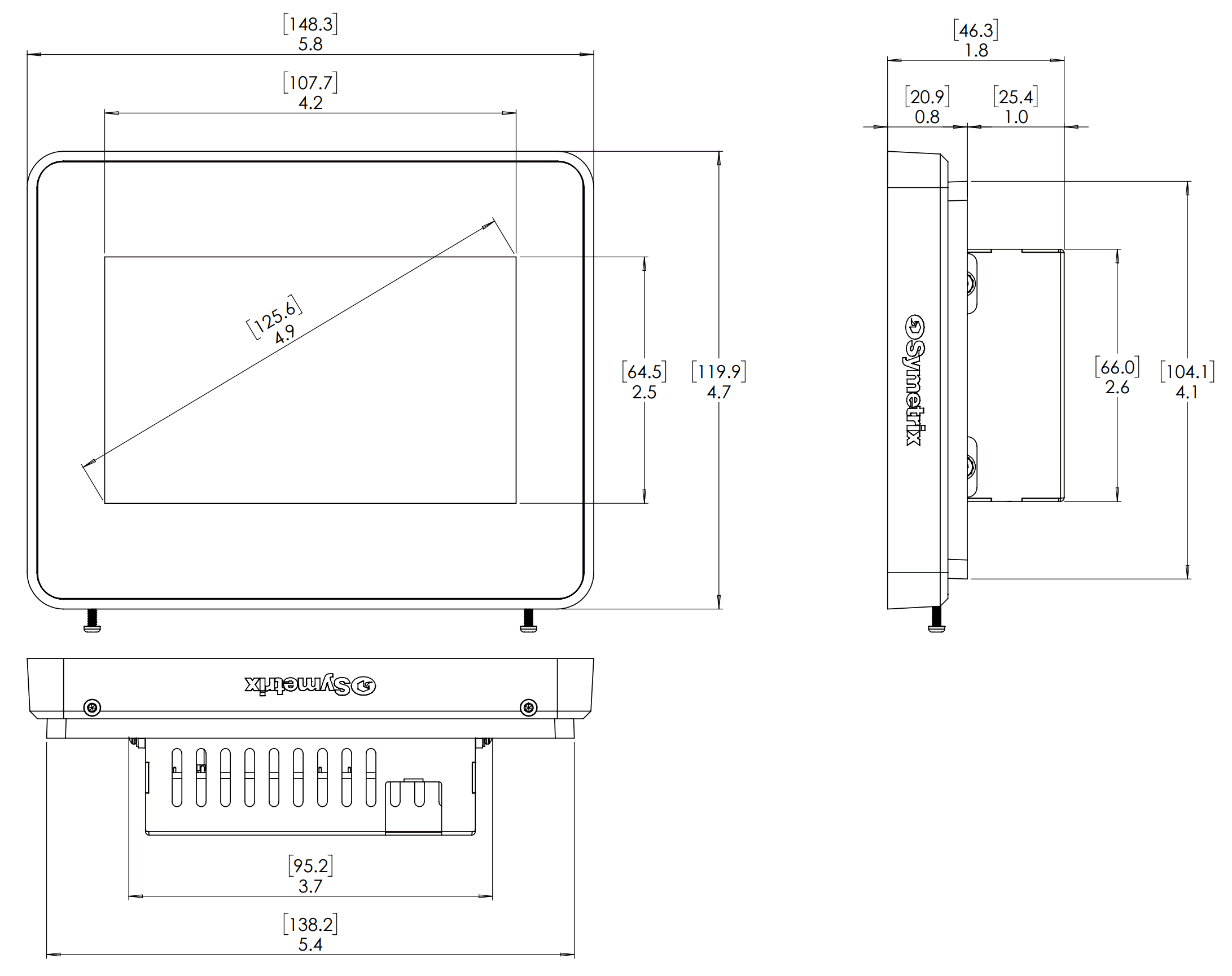

Mechanical Data¶
Space Required
2-gang US or EU Wall Box (WDH: 18.91 in x 9.5 in x 1.72 in / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance.
Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Mounting¶
Included 2-gang wall bracket
Optional Tabletop Stand: part number 80-0192
Electrical¶
Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max
Ventilation¶
Ambient operating temperature range is 0° C to 40° C (32° to 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light.
Certifications or Compliance¶
EMC: “Class A” device (applies to all of the following) EN 55032, EN 55035, FCC Part 15, ICES-003.
Environmental: RoHS
Weight¶
Product: 0.95 lbs (0.43 kg)
Shipping: 1.25 lbs (0.57 kg)
A&E Specifications¶
The touch-screen device shall enable control of a Symetrix DSP system via a full-color LCD screen with capacitive touch for user input.

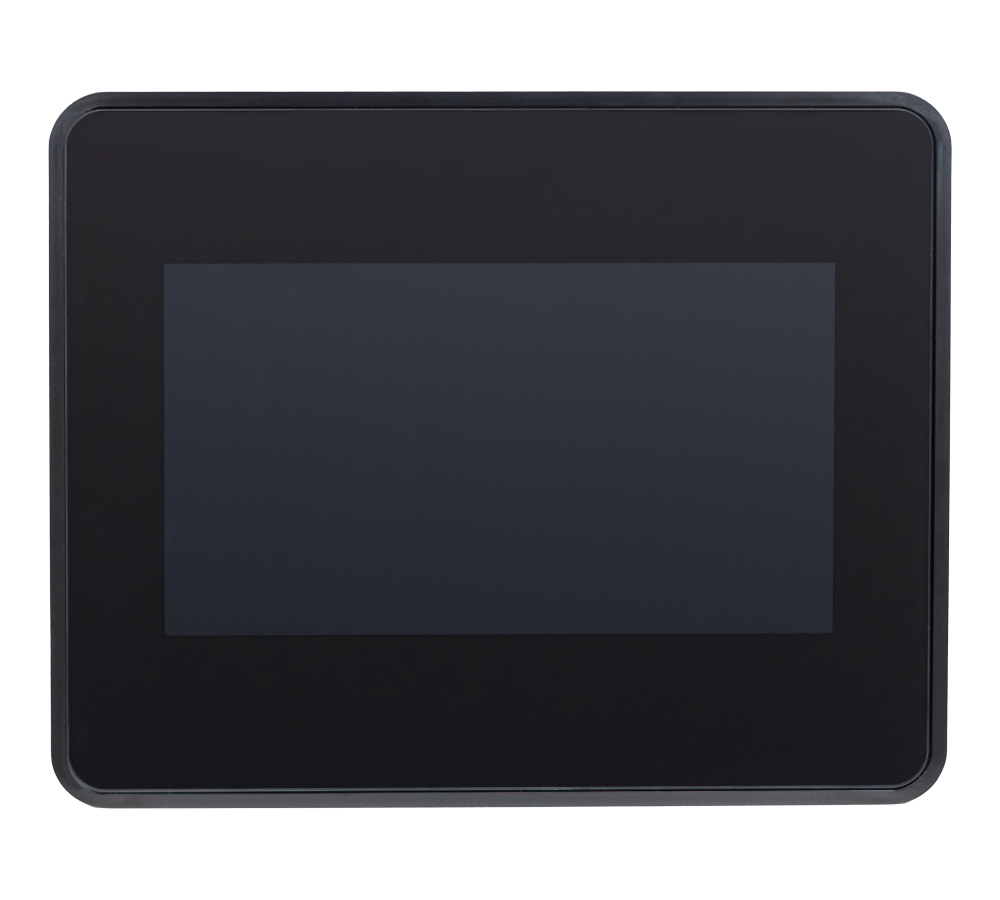

The device’s display shall be rectangular measuring 5 inches (127 mm) diagonally. It shall have 1280x720 pixel resolution and up to 500 candelas/m2 (or nits) brightness. The display shall be framed by a rectangular black plastic bezel. The controller shall be designed to mount on a wall surface and attach to standard US or EU North American and European wall and junction boxes in landscape (horizontal) orientation.

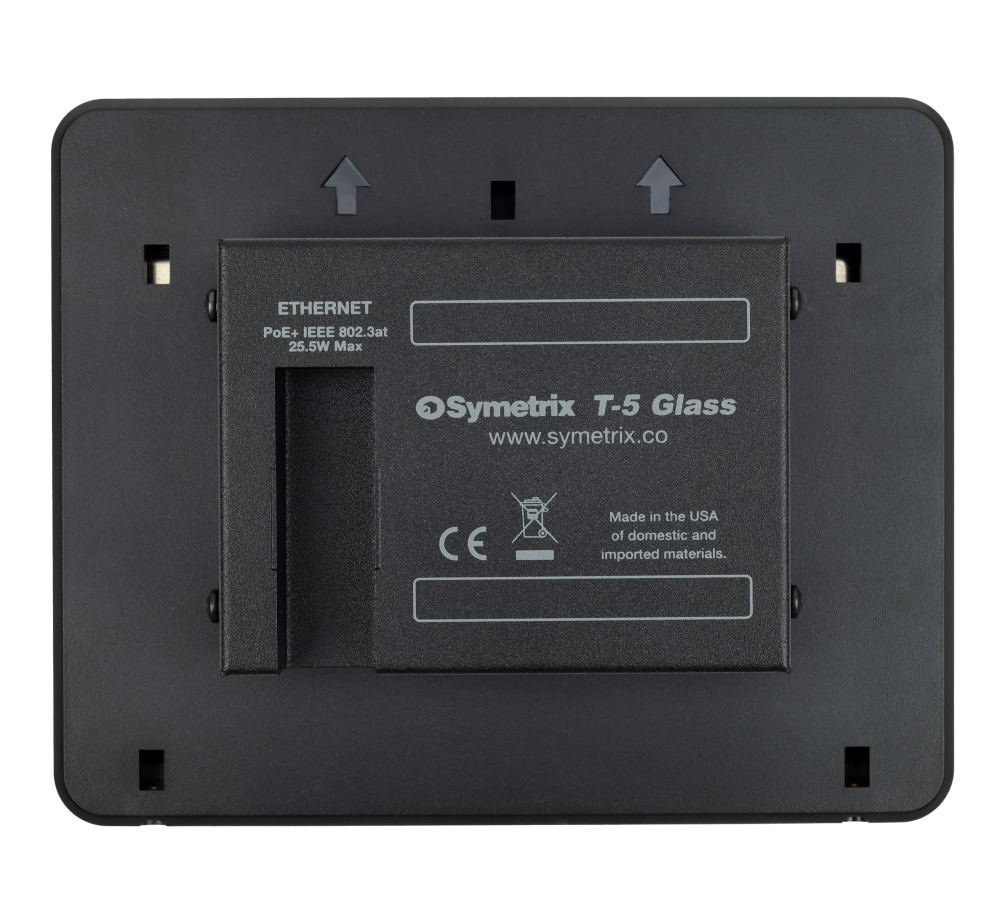

The device shall communicate with a Symetrix DSP system via 1000 Mbps Ethernet using standard TCP/IP protocols using an RJ45 jack on the rear panel. The device’s user interface screens with graphics, controls, and indicators, labels, etc. shall be resident in non-volatile program memory which provides program security should power fail. The device shall provide an on board real time clock to facilitate time and date display and may sync to NTP.
A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows 10® or higher operating system. The designer application shall develop and manage the device’s user interface screens constructed from objects within the Symetrix Composer software including faders, buttons, meters, LEDs, text, icons, and other graphics.
The controller shall have an operating temperature range of 0° C to 40° C (32° to 104° F).
The device shall be powered over Ethernet (PoE+) by an IEEE 802.3at standard compliant switch. The device shall meet CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of steel and molded plastic. The device shall be a Symetrix T-5.
