Stewart Audio

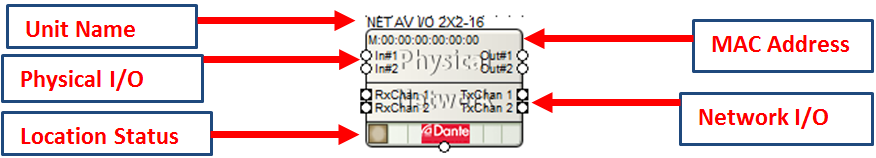

A Stewart Audio AV8-2, AV25-2, CVA16-1, CVA50-1, DSP series, FLX Series, or NetAV I/O 2x2 can be added to the site view.

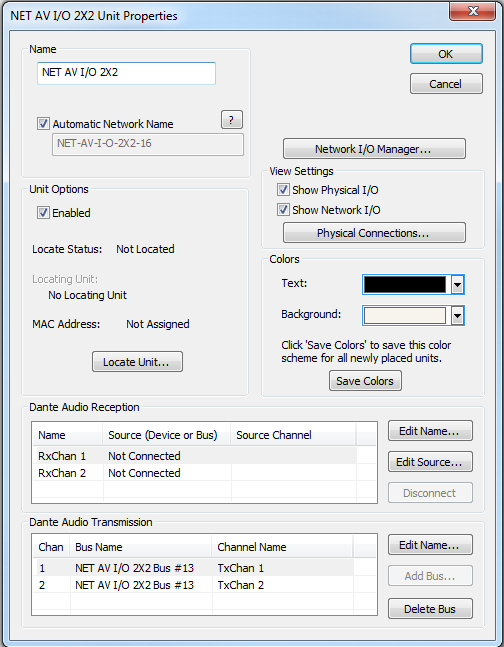

All of the following features are managed in the Unit Properties dialog. To access the Unit Properties, right-click on the unit module in the Site View and choose “Unit Properties...”

  • Name - It is recommended to assign a unique unit name for each unit in the design based on the unit's purpose or location. Composer will always append a unique numeric identifier to this name.

  • Network Name - When Automatic Network Name is checked, the network name is auto-generated from the unit name. Network names cannot contain special characters or spaces and must be unique.

  • Enabled - When the enabled box is checked, the unit must be physically present on the network for a Push of the site file to the hardware. When the enabled box is unchecked, a X will appear on the unit module in the Site View, and the unit will not be required to be physically present for the Push of the site file.

  • Locate Unit...- Opens the 'Locate Hardware' dialog box to select the unit to connect to.

  • Network I/O Manager -Opens the Network I/O Manager dialog. Click here to access instructions on how to program Network Transmit and Receive Buses.

  • View Settings- When either Show Physical I/O or Show Network I/O check box is checked, the unit module in the Site View will show the corresponding connections.

  • Physical Connections...- Opens the Edit Physical Connections dialog.

  • Colors-The text color and background color for the unit module can be customized. To save custom color settings made here as defaults for future units, click the Save Colors button.
