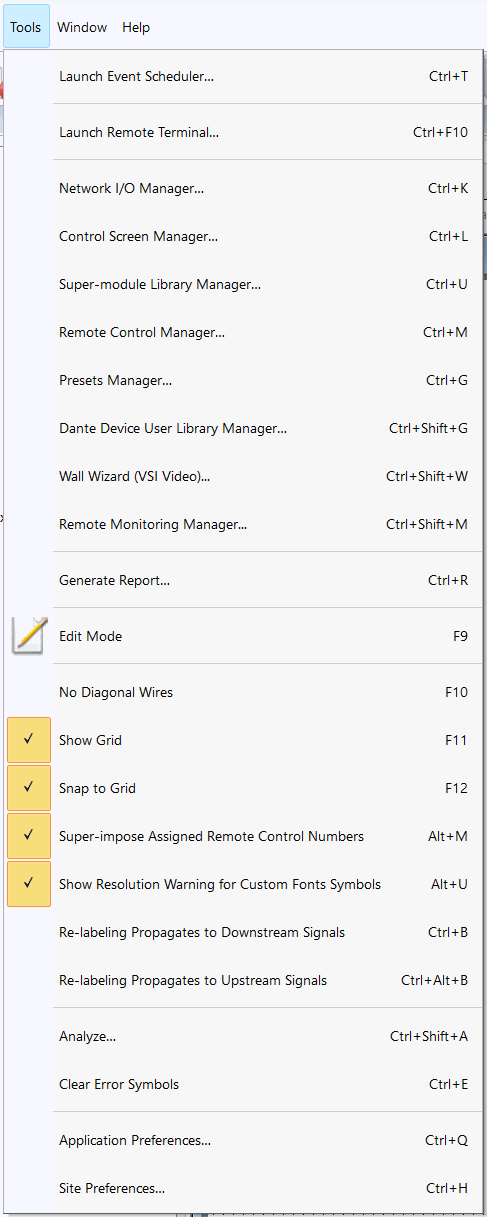

Tools Menu

The Tools menu contains Composer's Managers and more... Each manager configures a sub-system within Composer.

  • Launch Event Scheduler

  • Launch Remote Terminal - Launches Remote Terminal application for testing Ethernet-based control over Symetrix Composer-based devices.

  • Network I/O Manager

  • Control Screen Manager

  • Super-module Library Manager

  • Remote Control Manager

  • Presets Manager

  • Dante Device User Library Manager

  • Wall Wizard (VSI Video)

  • Remote Monitoring Manager/AV-Ops Center

  • Generate Report

  • Edit Mode - Toggles editing on or off. When off, the currently selected Site, Design or Control Screen cannot be edited.

  • No Diagonal Wires - Toggles on or off the use of diagonal wires in the currently selected Site or Design view. Affects newly drawn wires.

  • Show Grid - Shows or hides the design grid in the currently selected Site, Design or Control Screen view.

  • Snap to Grid - Forces objects to snap to grid lines.

  • Super-impose Assigned Remote Control Numbers - Overlays the Control Numbers assigned to DSP parameters in module views.

  • Show Resolution Warning for Custom Fonts Symbols - Overlays an "!" on Font Symbols that will appear blurry/pixilated at the displayed size due to the Symbol resolution.

  • Re-labeling Propagates to Downstream Signals - Editing channel labels will label other downstream module I/O along the signal path.

  • Re-labeling Propagates to Upstream Signals - Editing channel labels will label other upstream module I/O along the signal path.

  • Analyze

  • Clear Error Symbols - Immediately clears all error symbols in the design placed by the Analyze function.

  • Application Preferences

  • Site Preferences
