Analyze¶

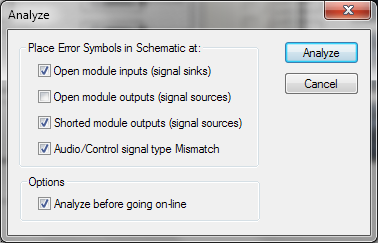

The Analyze dialog allows you to select the errors to check for in your Site File. The Analyze operation will selectively place error symbols in the schematic to indicate Open module inputs, Open module outputs, Shorted module outputs, and/or Audio/Control signal type Mismatches in the Site.

Optionally, an Analyze operation may be run before going on-line.
